Description
Step pulleys are essential mechanical components used for speed control in a wide range of machinery and equipment. Their simple yet effective design allows for variable speed adjustments, making them invaluable in applications where precise speed control is required. In this article, we will delve into the features, functions, and applications of step pulleys.
Understanding Step Pulleys

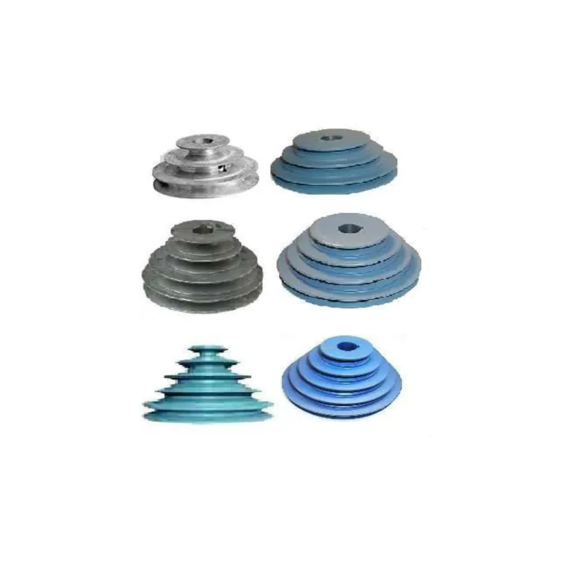

1. **Design and Construction:** Step pulleys consist of a grooved wheel with multiple steps or grooves of varying diameters. These steps provide different contact points for belts or ropes, allowing for speed adjustments by changing the effective pulley diameter.
2. **Material:** Step pulleys are typically made from durable materials such as cast iron, steel, or aluminum. The choice of material depends on factors like the application’s load and environment.
3. **Single and Multiple Sheaves:** Step pulleys can have a single sheave (groove) or multiple sheaves stacked on a common shaft. Multiple sheave designs offer a wider range of speed adjustments.
Functions of Step Pulleys
1. **Speed Control:** The primary function of step pulleys is to control the speed of driven machinery. By shifting the driving belt or rope to different steps, the effective pulley diameter changes, altering the speed of the driven component.
2. **Mechanical Advantage:** Step pulleys also provide a mechanical advantage when used in conjunction with other pulleys and systems. They allow for the transmission of power and motion from one part of a machine to another, often with speed or torque adjustments.
Applications of Step Pulleys
1. **Machine Tools:** Step pulleys are commonly found in machine tools like lathes, drill presses, and milling machines. These tools require precise speed control to accommodate different materials and machining processes.
2. **Exercise Equipment:** In gym equipment such as treadmills and stationary bikes, step pulleys are used to adjust the resistance or speed levels, allowing users to customize their workouts.
3. **Textile Industry:** Textile machinery, like spinning frames and looms, often employ step pulleys to control the speed of spinning or weaving processes, ensuring consistent thread tension and quality.
4. **Automotive Repair:** Step pulleys can be found in automotive repair shops, particularly in engine lathes and belt-driven automotive equipment for tasks like grinding and polishing.
5. **Material Handling:** Conveyor systems and material handling equipment use step pulleys to control the speed of the conveyor belts, facilitating the efficient movement of goods in manufacturing and logistics.
Conclusion
Step pulleys are versatile mechanical components that play a crucial role in achieving precise speed control in various applications. Their straightforward yet effective design makes them indispensable in industries ranging from manufacturing and automotive repair to fitness and textile production. By offering a range of speed adjustments, step pulleys contribute to the efficiency, safety, and functionality of numerous machines and equipment, demonstrating their enduring importance in modern engineering and industry.
